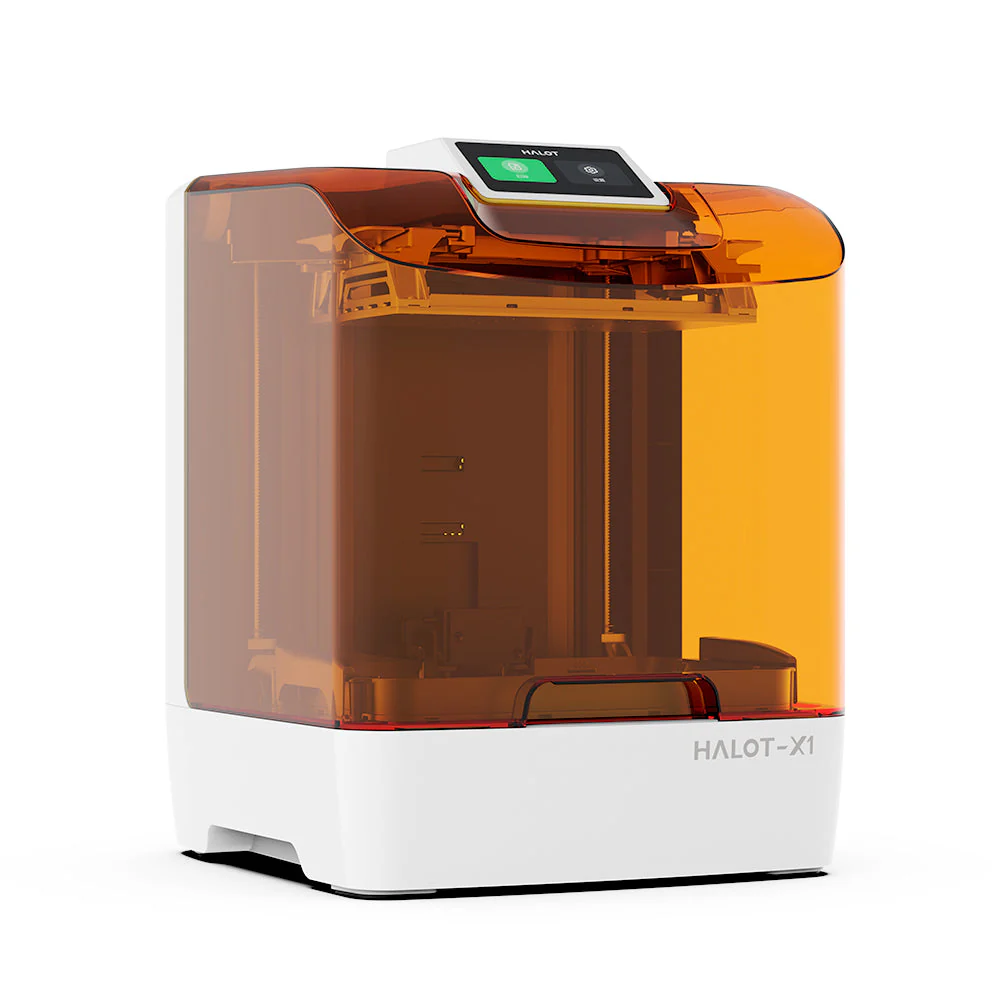

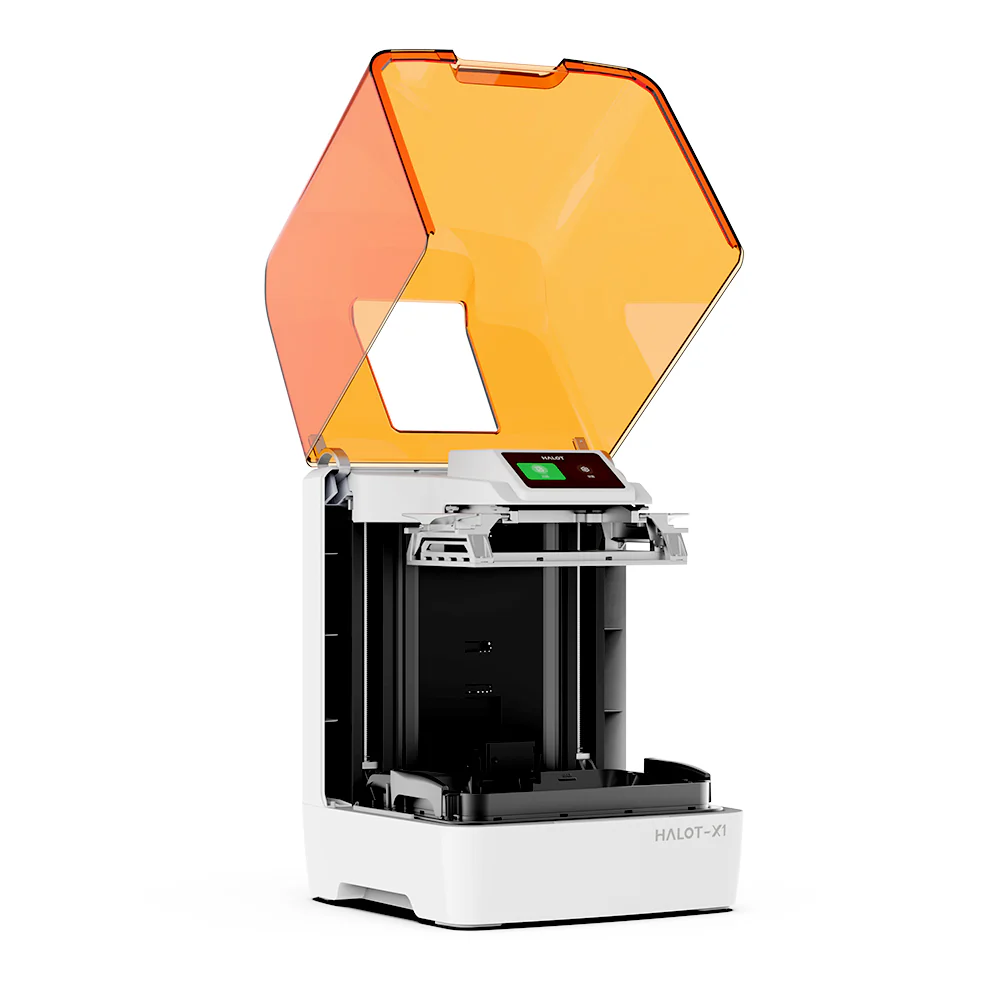

Creality HALOT-X1
The Creality HALOT-X1 is a high-resolution resin printer built around a 16K monochrome LCD, a honeycomb matrix light source and a motion system designed for fast, detailed production.
Key Features
- 16K monochrome LCD with 15120 × 6230 resolution
- 14 × 19 μm pixel size
- 211.68 × 118.37 × 200 mm build volume
- Maximum printing speed of 170 mm/h
- Honeycomb matrix light source
- 3.98-inch capacitive touchscreen
- USB and Wi-Fi file transfer
- 405 nm resin compatibility
- Optional AFU system for resin feeding, heating, RFID recognition and remaining-material monitoring
Technical Specifications
| Printing Technology | LCD resin printing |
|---|---|
| Build Volume | 211.68 × 118.37 × 200 mm |
| Resolution | 16K – 15120 × 6230 |
| Pixel Size | 14 × 19 μm |
| Z-axis Accuracy | 0.01 mm |
| Layer Height | 0.01–0.2 mm |
| Maximum Print Speed | 170 mm/h |
| Light Source | Honeycomb matrix |
| Exposure Intensity | 6500 ±10% μW/cm² |
| Touchscreen | 3.98-inch capacitive |
| Connectivity | USB / Wi-Fi |
| Machine Size | 344 × 331 × 434 mm |
| Net Weight | 12.93 kg |
| Power | 350W |
What’s Included
- HALOT-X1 printer
- Build tray and platform
- Power cable
- Scrapers
- Gloves
- USB drive
- Basic tools and documentation
Why Buy the Creality HALOT-X1?
It offers very high pixel density and fast printing for users producing detailed figures, jewellery patterns, prototypes and other precision resin parts.
Important: The AFU resin management system is package-dependent and may not be included with the standard printer. Resin printing requires suitable PPE and ventilation.
