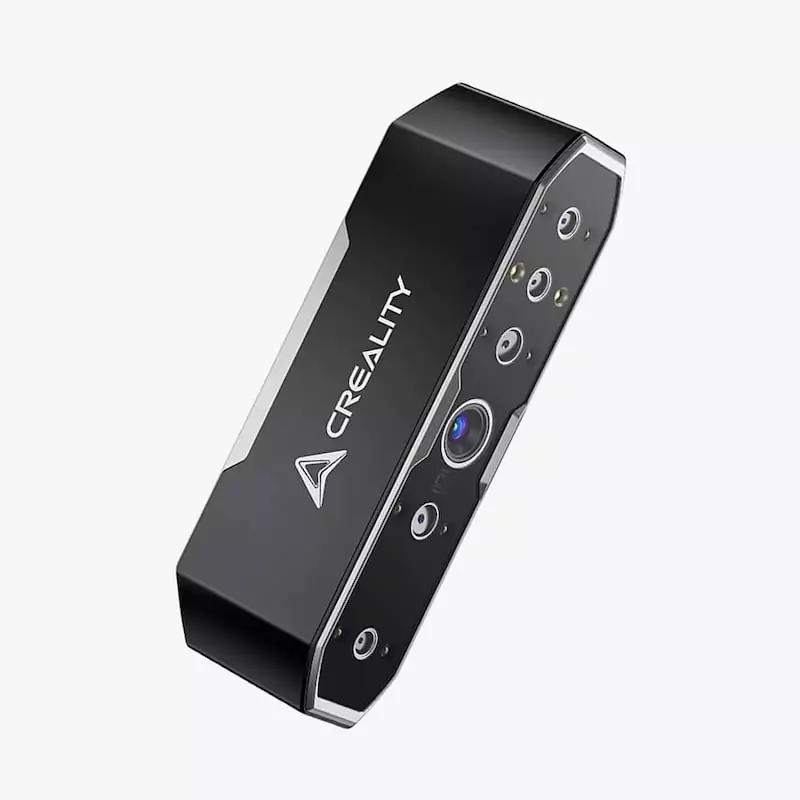

Creality Otter Basic 3D Scanner
The Creality Otter Basic uses four-lens NIR stereo vision to capture small and large objects with accurate geometry and colour information. The Basic package is intended for wired scanning through a compatible computer.
Key Features
- Four-lens NIR stereo vision
- Accuracy up to 0.05 mm
- Scanning speed up to 30 fps
- Object size range from approximately 20 mm to 2,000 mm
- Scans many dark and metallic surfaces without scanning spray
- Marker, geometry and texture alignment
- Exports OBJ, STL and PLY files
- 24-bit colour capture
Technical Specifications
| Scanning Mode | NIR binocular structured light |
|---|---|
| Accuracy | Up to 0.05 mm |
| 3D Resolution | 0.1–2 mm |
| Scanning Speed | Up to 30 fps |
| Minimum Scan Volume | 20 × 20 × 20 mm |
| Working Distance | 120–1200 mm |
| Output Formats | OBJ / STL / PLY |
| Scanner Weight | 300 g |
| Scanner Size | 173 × 39 × 56 mm |
| Connection | Wired USB |
What’s Included
- Otter Basic scanner
- Data cable
- Calibration board
- Scanning test object
- Adapters and documentation
Why Buy the Creality Otter Basic 3D Scanner?
It covers a wide range of object sizes while remaining portable, making it useful for reverse engineering, product capture, automotive parts and digital archiving.
