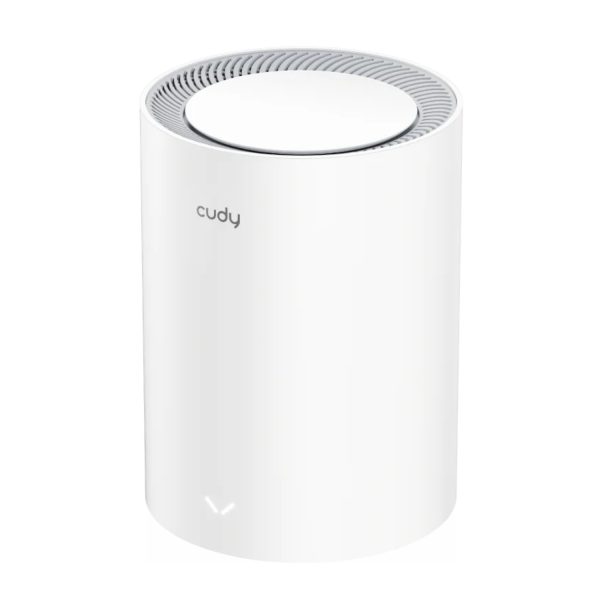

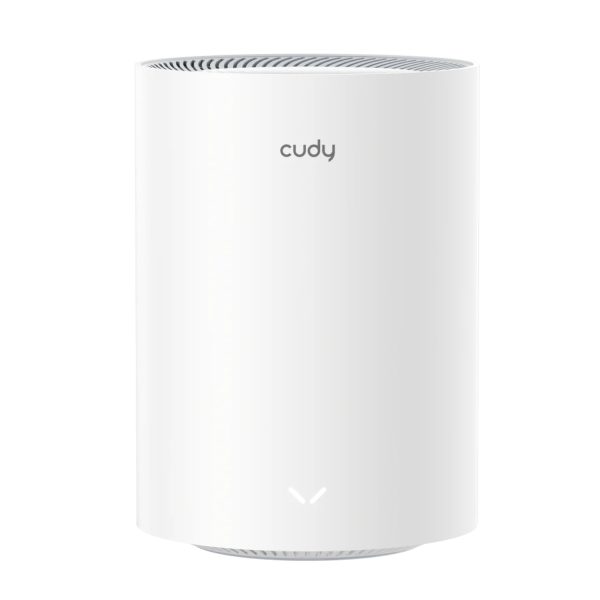

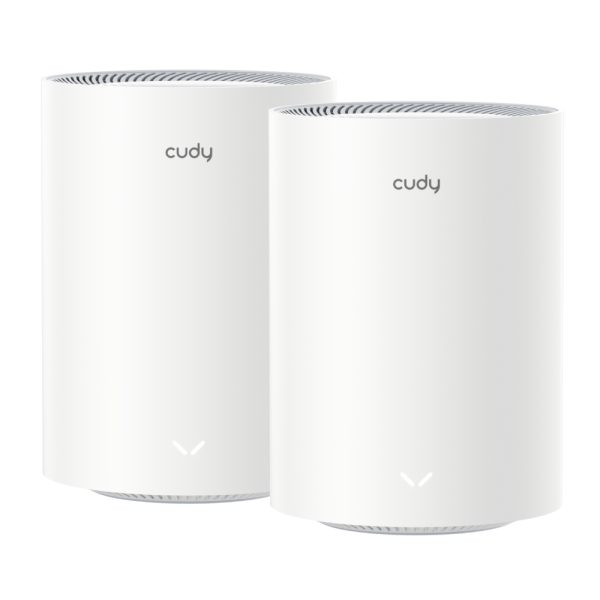

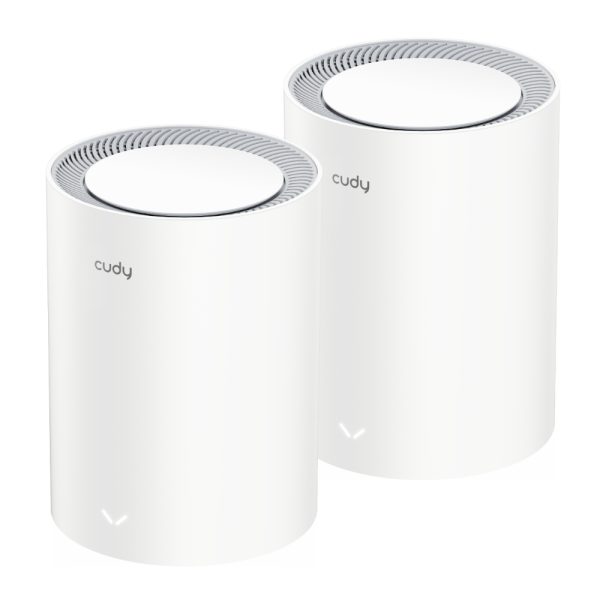

The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed
to meet the demands of modern homes with high-bandwidth activities like 4K
streaming, online gaming, and smart home integration. Featuring five advanced
antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on
5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home.
With coverage options for spaces up to 6500 sq ft using a three-pack system,
it’s the perfect choice for large households or multi-level homes with demanding
internet needs.
Advanced parental controls allow you to manage online activity by setting time
limits and blocking inappropriate websites, ensuring a safe browsing environment
for kids. Security is enhanced with WPA3 encryption, protecting your network
from brute-force attacks, while a Guest Network feature keeps your personal
devices separated from visitors’ devices for an added layer of privacy.
Additionally, the system supports six built-in VPN protocols, offering
compatibility with over 50 VPN providers and enabling you to host your own VPN
server for secure remote access.
With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures
reliable performance and easy network management. The intuitive system panel
provides clear insights into network status, while the built-in diagnostic tool
simplifies troubleshooting. Whether you’re managing over 200 connected devices,
running simultaneous streams, or maintaining a secure and private network, the
Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution
tailored for today’s connected lifestyle.
FEATURES:
* 1.3 GHz Dual-Core CPU
* 4-Stream Dual-Band Wi-Fi 6
* 2402Mbps + 574Mbps Wi-Fi 1
* 200 Connected Devices 2
* Fast Roaming
* Cudy Mesh, VPN Server and Client
* Multi-Band Simultaneous Backhaul
* Cudy App, Cloud Control
* Contains 3 x Mesh Units
SPECIFICATIONS:
* Chipset: MT7981
* CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
* Flash/ROM: 128 MB (1Gbit) NAND
* DDR/RAM: 256 MB (2Gbit) DDR3
* 5.0GHz Wi-Fi Speed: 2402Mbps
* 2.4GHz Wi-Fi Speed: 574Mbps
* 5.0GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
* 2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
* Wi-Fi Antennas: 5× Internal
* 5.0GHz Antenna Gain Max: 5.1dBi
* 2.4GHz Antenna Gain Max: 4.2dBi
* FEM or PA/LNA: 5 GHz: 3× Internal | 2.4 GHz: 2× Internal
* Beamforming: True
* Range Performance: Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
* Wall Performance: Two wooden walls with thickness < 10 cm (4”) | One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)
* Multi-Pack Indoor Coverage:
+ 2 Pack: 400 m² (4300 sq ft)
+ 3 Pack: 600 m² (6500 sq ft)
+ Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

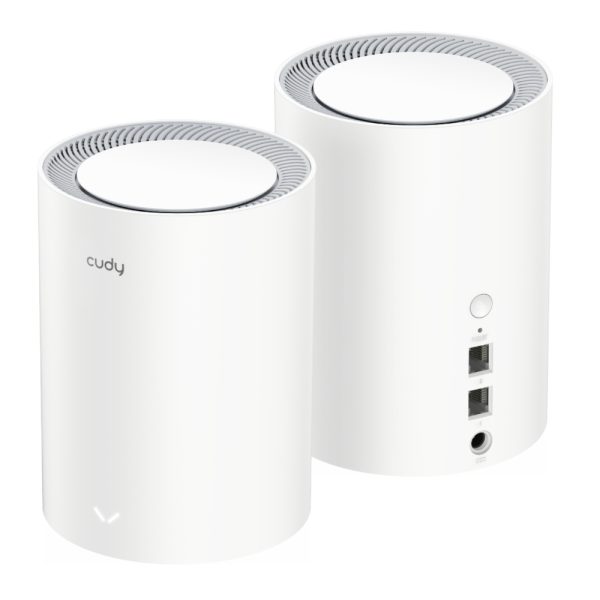

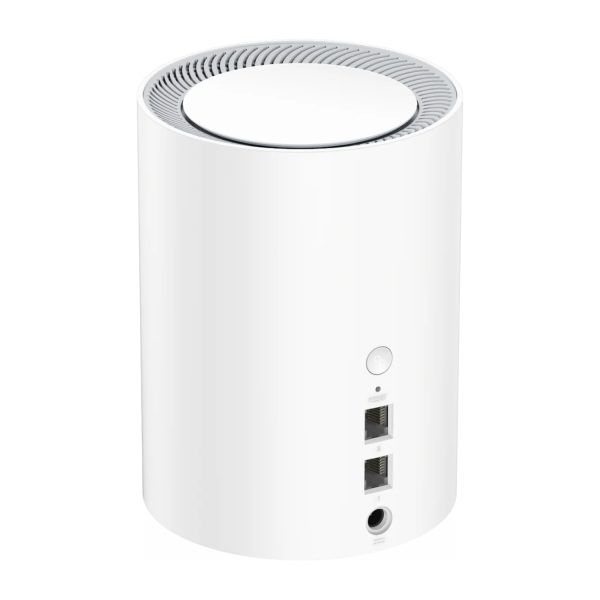

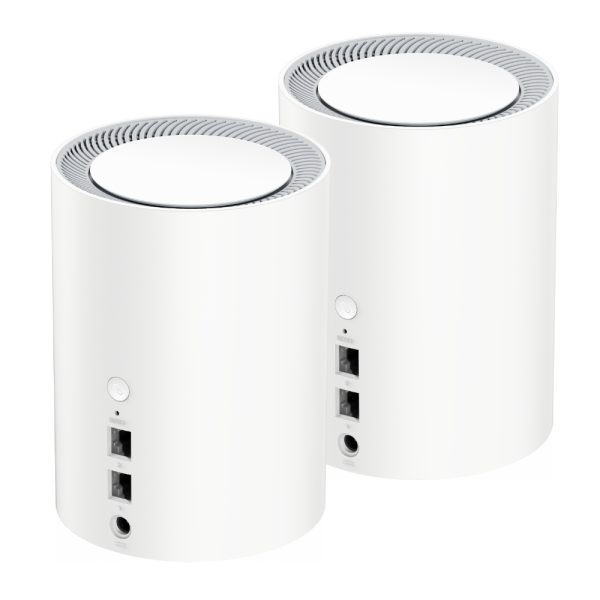

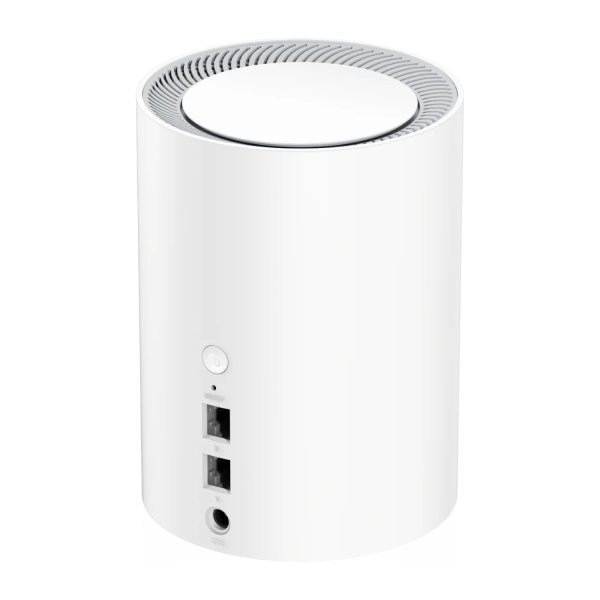

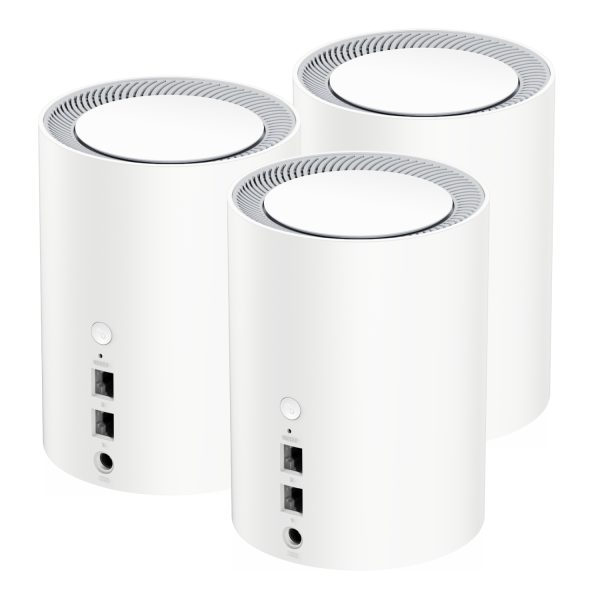

* Interfaces
* 2.5G RJ45 Ports: 1
* Gigabit RJ45 Ports: 1
* Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port
* LED: System | Speed/Link/ACT of Ethernet Port
* Physical Buttons: WPS Button | Reset Button
* Power Input: DC Jack
* Power Methods: DC
* DC: 12V 1A
* Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
* Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
* Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
* Humidity: 10% ~ 90% non-condensing
* Storage Humidity: 5% ~ 95% non-condensing
* Certifications: FCC, CE
* Product Dimensions: 11 x 15.4 cm
* Product Weight: 360g

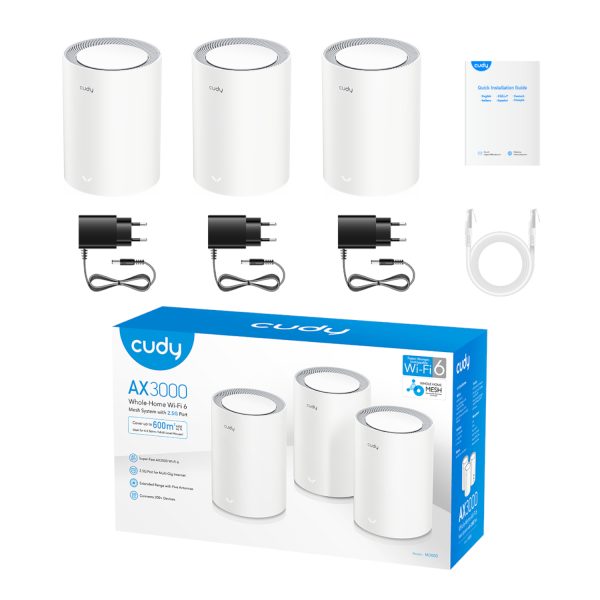

WHAT’S IN THE BOX:

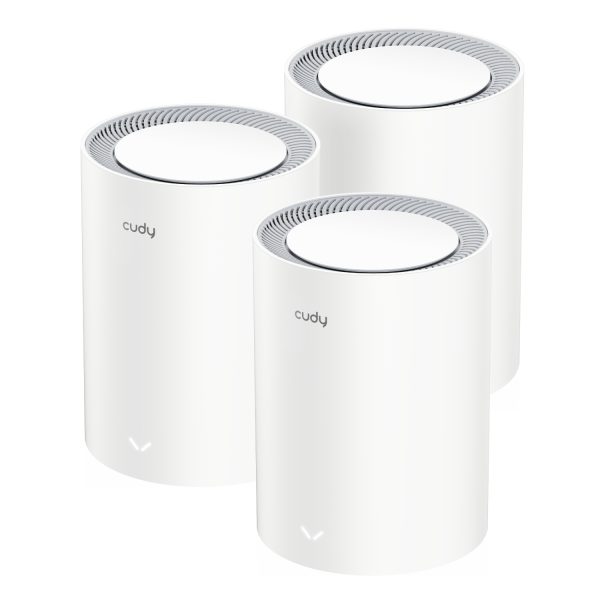

* Cudy AX3000 Mesh Wi-Fi 6 System – White x3
* Power Adapter x3
* Ethernet Cable x1
* Installation Guide x1
